This is how I make wire loop bead connectors when I want them snug against the bead. I use 21 gauge half hard wire.
These are the tools I use: a pair of bail-forming pliers and a flush cutter.
I first trim the end of the wire so it’s flat, not pointed. Then I make a loop on one end so it becomes a head pin. Then I thread this head pin through the bead.
I bend the straight wire over with my fingers as close to 90˚ as I can.

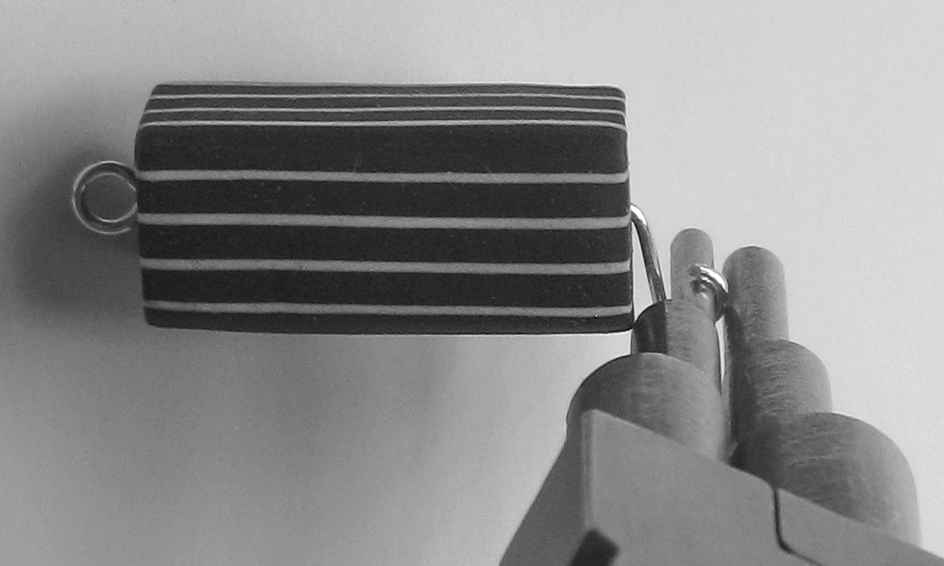

Next, I grab the end of the wire with the bail-forming pliers and coil it until it’s close to centered, but not quite.
I allow the wire to overlap.
Here’s a view from the other side. You can see it’s off center.
I remove the pliers and trim the wire so it’s flat, not pointed, as close as the flush cutters will allow. This leaves a fairly substantial gap.
I put the pliers back in the loop and roll the wire until the loop is centered. This closes the gap and it’s done.
